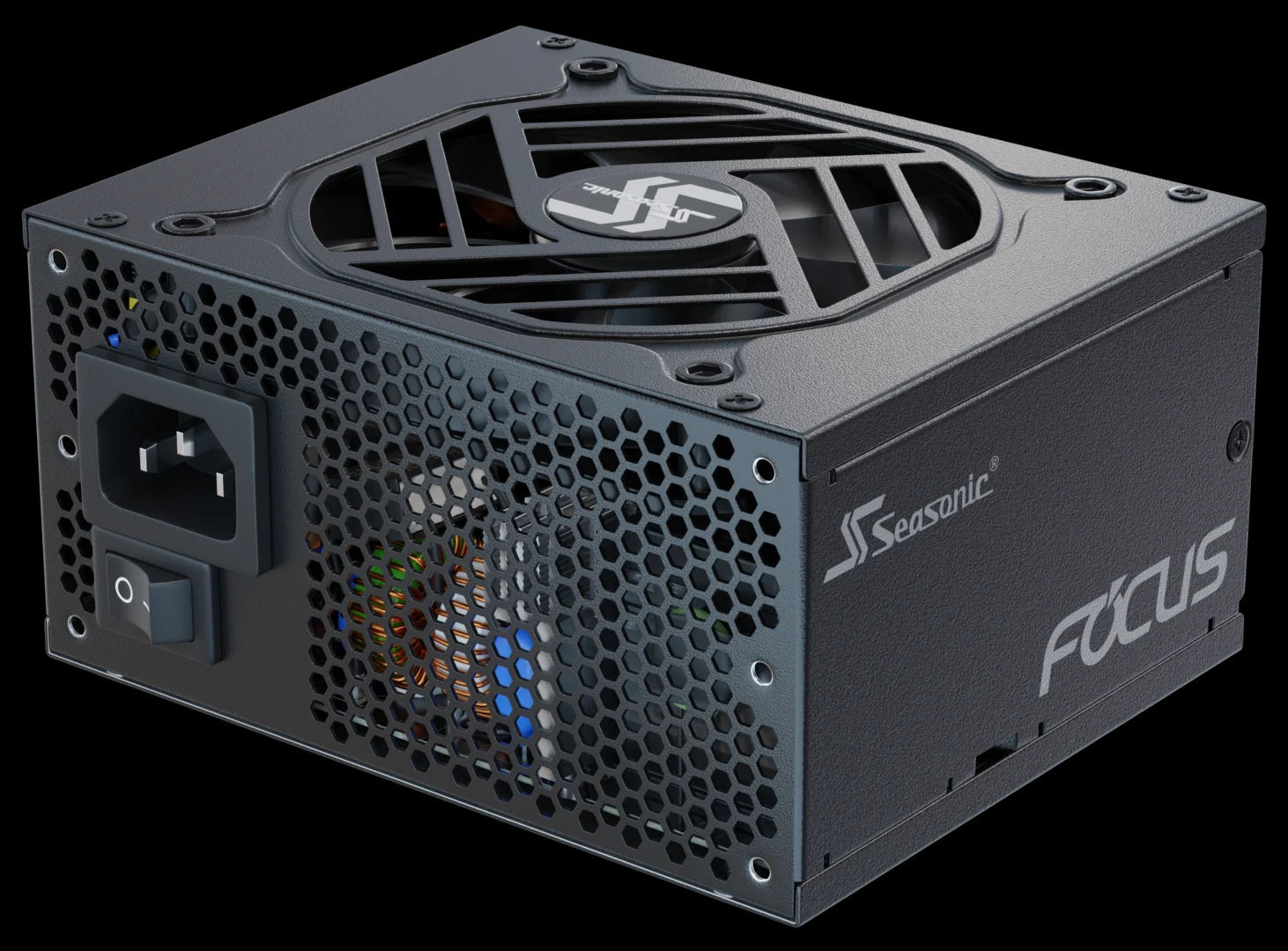

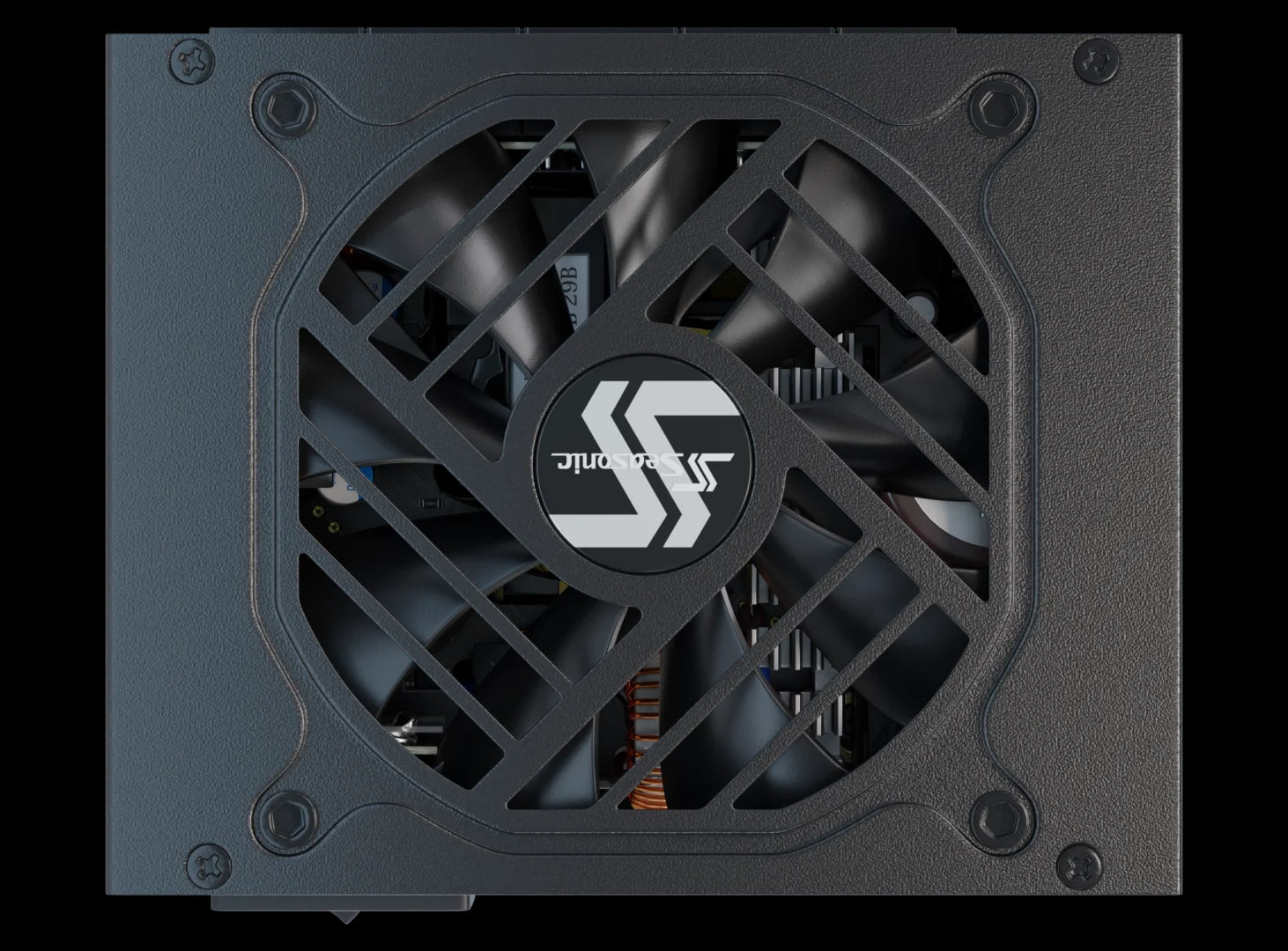

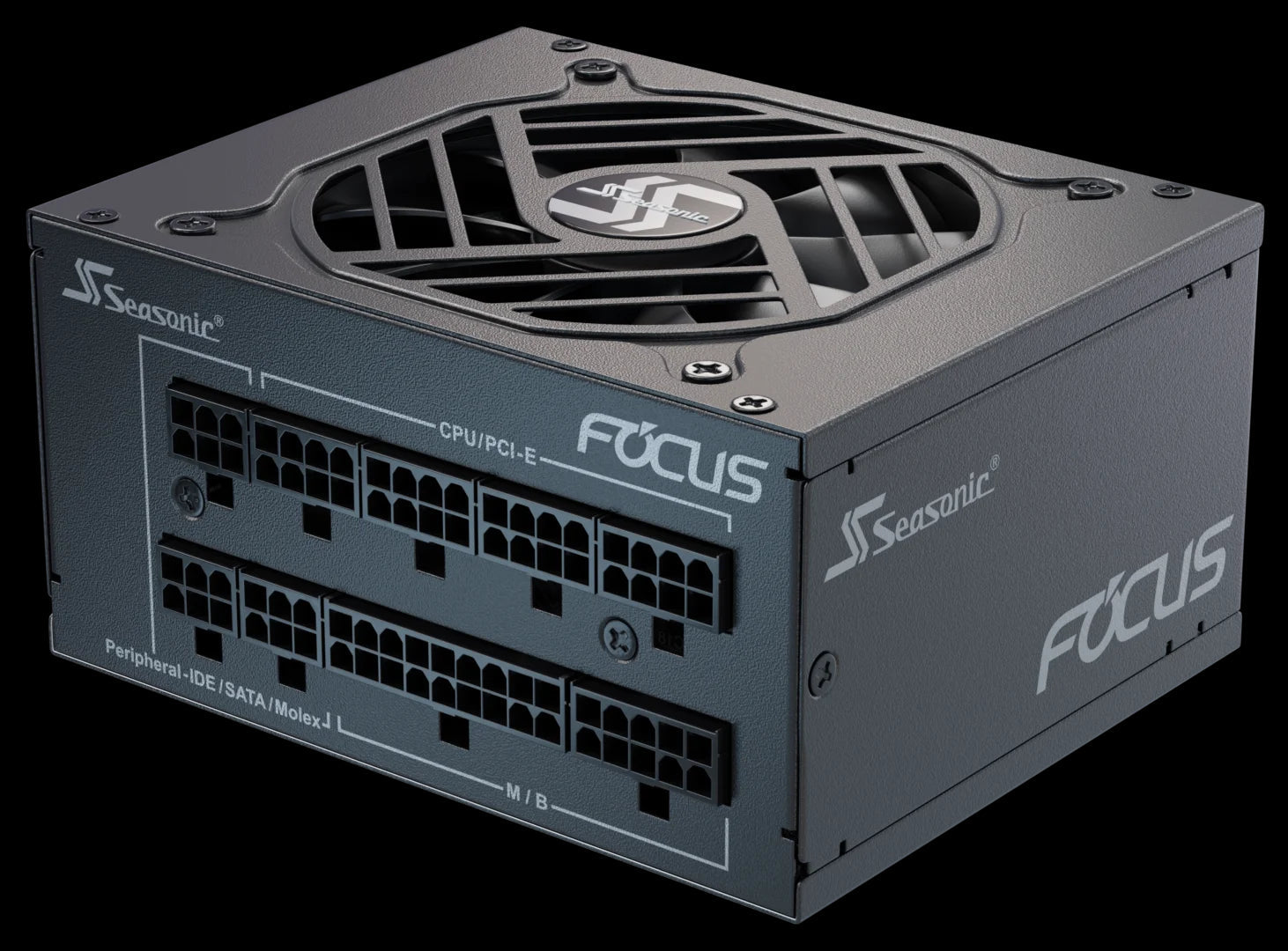

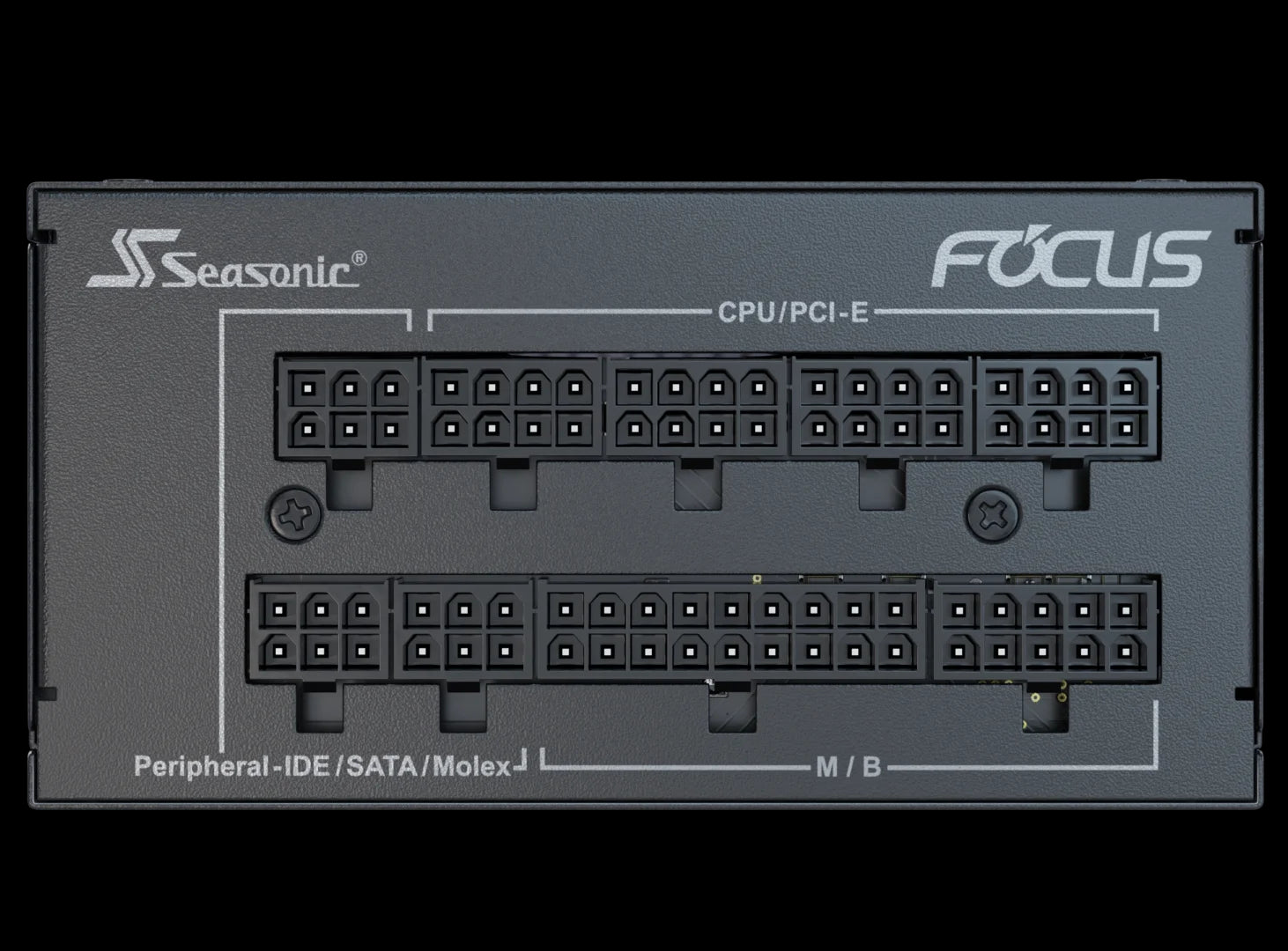

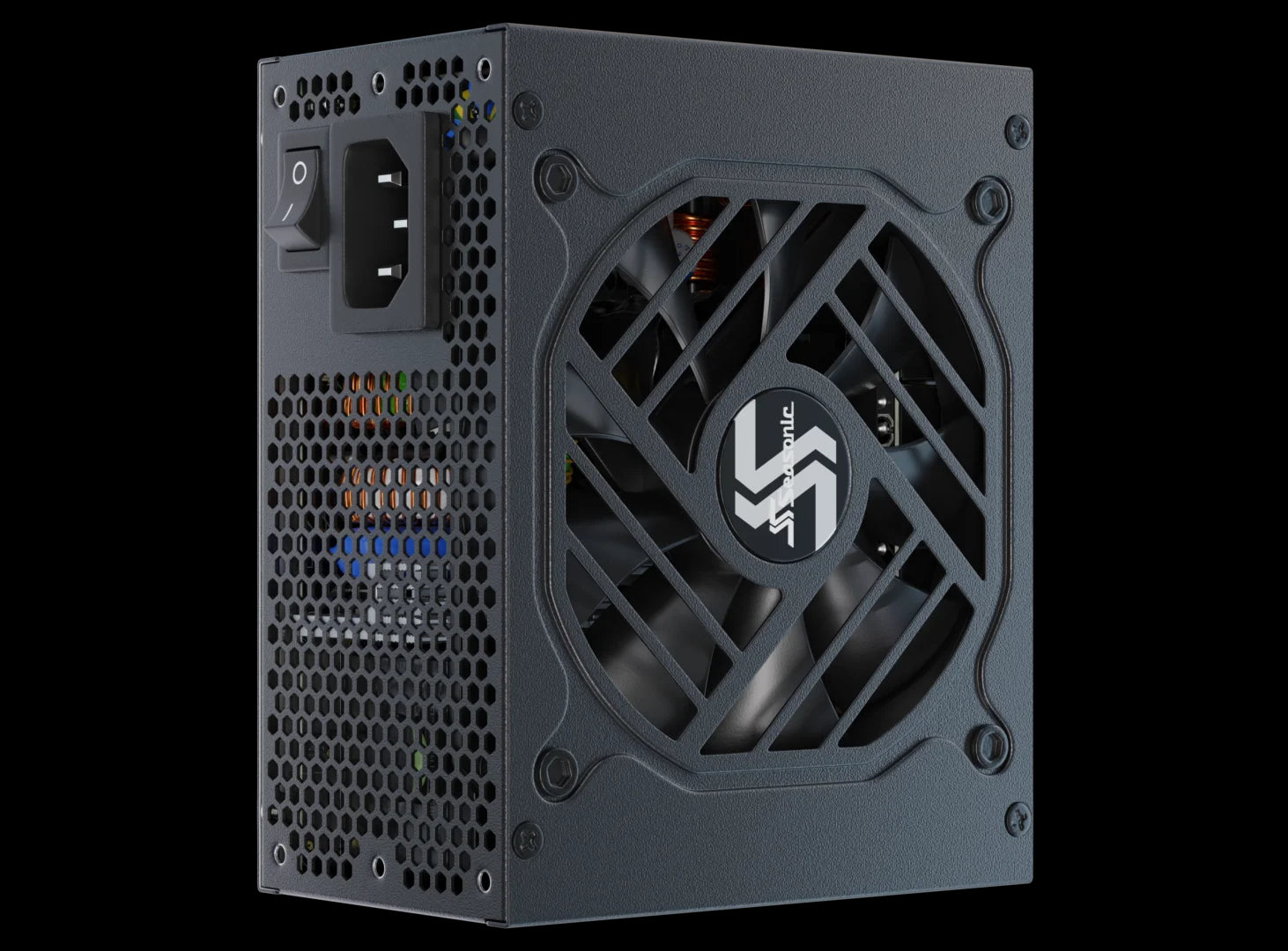

NNEDSZ Seasonic FOCUS SGX-750 (2021) 750W Modular 80 Plus Gold PSU

£387.40 GBP
£387.40 GBP
Sale Sold out
Tax included.
In stock (50 units), ready to be shipped
  • Vendor:

    NNEDSZ

  • Type:

    Electronics > Computers & Tablets > Desktops & Accessories

Description

FOCUS SGX (2021)
The new line of Seasonic's FOCUS SGX is versatile in its application and powerful with a small footprint. It is a standard SFX unit, measuring at 125 mm (L) x 100 mm (W) x 63.5 mm (H). The FOCUS SGX (2021) is shipped with an SFX to ATX adapter bracket in the box, which allows the power supply to be mounted not only in the SFX form factor chassis, but also a standard ATX chassis should the user prefers to reserve more space for airflow inside the PC case. The Seasonic hybrid fan control is always enabled to optimize the cooling according to necessity.

SPECIFICATIONS

Technical Specifications

80PLUS ®

Gold

Cybenetics Efficiency Level

TBA

Cybenetics Noise Level

TBA

Form Factor

SFX

Fan Information

Fan Size

92 mm

Fan Control

Premium Hybrid Fan Control

Fan Bearing

Fluid Dynamic Bearing

Life Expectancy

50,000 hours at 40 °C, 15% - 65% RH

Cable Information

Modularity

Fully Modular

Cable type

Flat black cables

Electrical Features

Operating Temperature

0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C linearly)

MTBF @ 25 °C, excl. fan

100,000 hours

AC Input

Full Range

Protection

OPP, OVP, UVP, OCP, OTP, SCP

Safety and Environmental

Safety and EMC

cTUVus, TUV, CB, CCC, BSMI, EAC, CE

Environmental Compliance

Energy Star, RoHS, WEEE, ErP Lot 6, REACH

Warranty

10 Years

V28-PSUSEAFOCUSSGX750W

Power Output

AC Input

Voltage: 100 V - 240 V

Current: 10 - 5 A

Frequency: 50 Hz - 60 Hz

DC Output

Rail

+3.3 V

+5 V

+12 V

-12 V

+5 VSB

Maximum Power

20 A

20 A

62 A

0.3 A

3 A

100 W

744 W

3.6 W

15 W

Total continuous power

750 W
